Product type：COG
Show contents：240x120

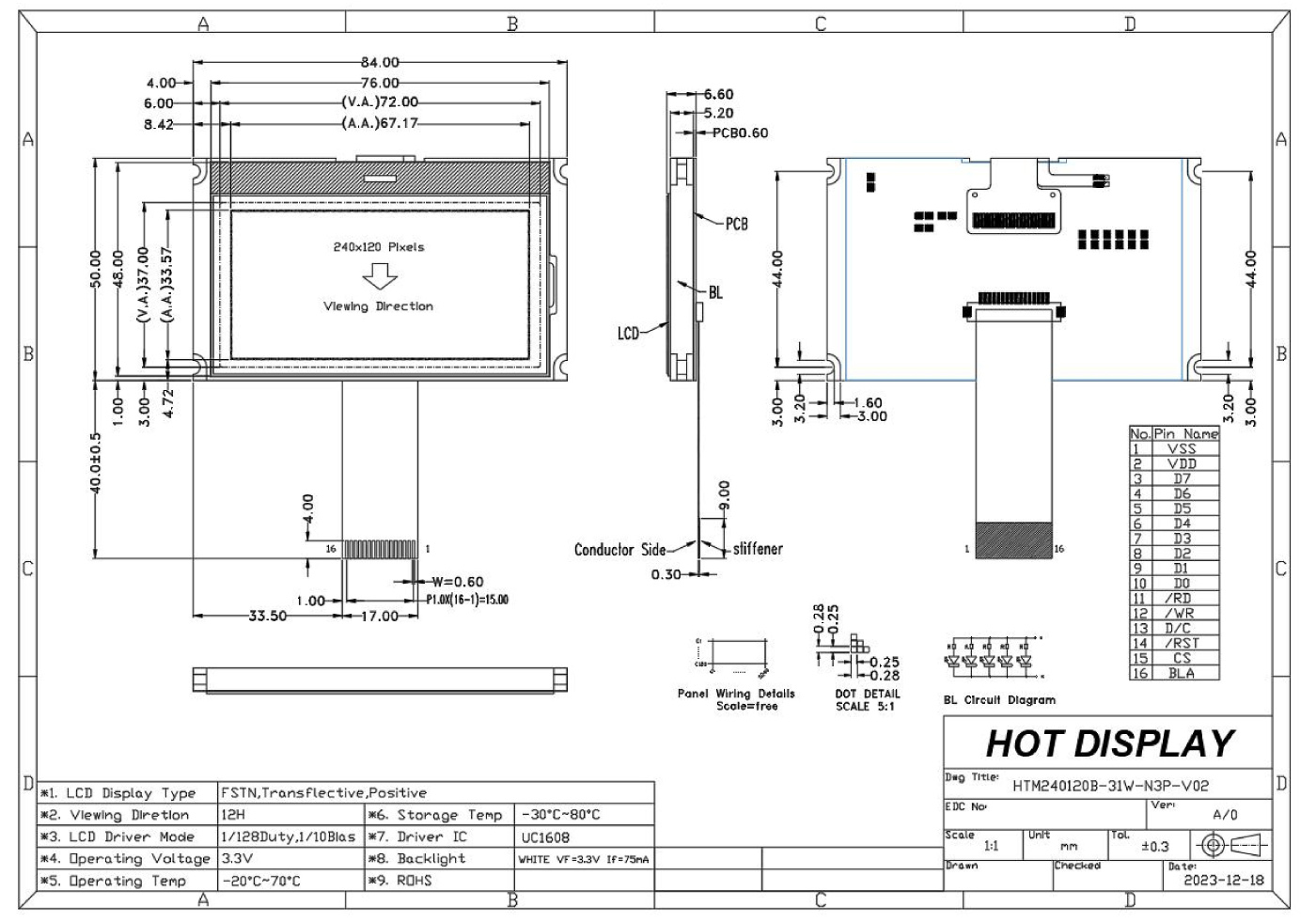

Outline size(mm) ：84.0x50.0x6.6
Size of View Window(mm)：72.0x37.0
Display size(mm) ：67.17x33.57
Point spacing(mm)：0.28x0.28
Product application：Instrumentation
Visual angle：12H
Backlight type or brightness：Backlight color optional
Connection PIN Number：FPC-16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：UC1608
This HOTLCD 240x120 Chip On Glass (COG) LCD Module Displays Deep Black Pixels On A Bright White Background. This Transflective LCD Monitor Is Engineered To Provide Optimal Visibility In A Variety Of Lighting Conditions In A Variety Of Environments. In Bright Sunlight, The Display Uses Its Reflective Layer To Reflect Ambient Light Back To The Viewer, Making The Screen Easy To Read. In Darker Environments, The LCD Has A Strong Built-In Backlight That Provides High Contrast And Displays Clear Graphics To The Viewer. This Advanced Display Technology Ensures That The Display Is Always Easy To Read, Regardless Of Lighting Conditions.
This Graphic LCD Display Module Is Fully Compatible With Arduino/C8051 And Can Be Seamlessly Connected With Other Electronic Systems And Suitable For Various Applications. The HTM240120B-31W-N3P-V02 Model Is Designed To Withstand Harsh Operating Conditions And Will Perform Abnormally When Used In Temperatures Ranging From -20 To 70 Degrees Celsius. The LCD Has An Optimal Viewing Angle Of 12:00, Operates At 3.3V, And Is RoHS Compliant.
